轴径
Shaft
Diameter | 轴承型号
Bearing Designation | 重量
Mass
近似
Approx | 外形尺寸
BoundaryDimensions | 额定负荷
BasicLoadRating | 极限转速
Limiting Speed | 现型号
CurrentCode | 原型号

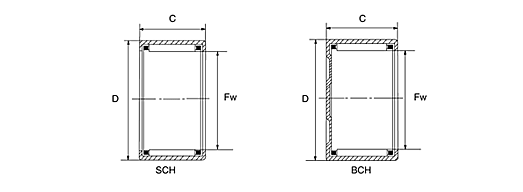

OriginalCode | Fw | D | C | 动
Dynamic | 静
Static | 油润滑 Oil | | mm | g | mm | N | rpm |
| 12.7 | SCH 87 |
| 0.009 | 12.7 | 19.05 | 11.13 |
|
|
| | 14.29 | SCH 910 |
| 0.013 | 14.29 | 20.64 | 15.88 |
|
|
| | SCH 912 |
| 0.017 | 14.29 | 20.64 | 19.05 |
|
|
| | 15.875 | SCH 108 |
| 0.013 | 15.875 | 22.225 | 12.7 |
|
|
| | SCH 1012 |
| 0.019 | 15.875 | 22.225 | 19.05 |
|
|
| | 22.225 | SCH 1412 |
| 0.032 | 22.225 | 30.162 | 19.05 |
|
|
| | SCH 1413 |
|
| 22.225 | 30.162 | 20.64 |
|
|
| | SCH 1413P |
|
| 22.225 | 30.162 | 20.64 |
|
|
| | SCH 1416PP |
|
| 22.225 | 30.162 | 25.4 |
|
|
| | SCH 1416 |
| 0.043 | 22.225 | 30.162 | 25.4 |
|
|
| | 25.4 | SCH 1612 |
| 0.036 | 25.4 | 33.338 | 19.05 |
|
|
| | SCH 1614P |
|
| 25.4 | 33.338 | 22.22 |
|
|
| | SCH 1616 |
| 0.047 | 25.4 | 33.338 | 25.4 |
|
|
| | 28.575 | SCH 1812 |
| 0.048 | 28.575 | 38.1 | 19.05 |
|
|
| | SCH 1816 |
| 0.063 | 28.575 | 38.1 | 15.4 |
|
|
| | 31.75 | SCH 2016 |
| 0.071 | 31.75 | 41.28 | 25.4 |
|
|
| | 34.925 | SCH 2213P |
|
| 34.925 | 44.45 | 20.62 |
|
|
| | 9.525 | BCH 68 |
| 0.0082 | 9.525 | 15.875 | 12.7 | 500 | 480 | 40000 | | 17.02 | BCH 06604 |
|
| 17.02 | 23.83 | 17.53 |
|
|
| | 31.75 | BCH 2020 |
| 0.0815 | 31.75 | 41.275 | 31.75 | 4080 | 7100 | 12000 |
|
