轴径
Shaft
Diameter | 轴承型号
Bearing Designation | 重量
Mass
近似
Approx | 外形尺寸
BoundaryDimensions | 额定负荷
BasicLoadRating | 极限转速
Limiting Speed | 现型号
CurrentCode | 原型号

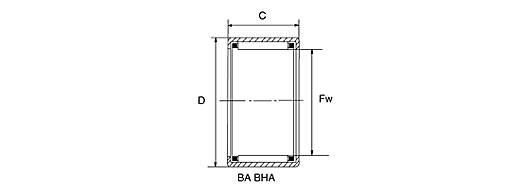

OriginalCode | Fw | D | C | 动
Dynamic | 静
Static | 油润滑 Oil | | mm | g | mm | N | rpm |
| 12.7 | BHA 88ZOH |
| 0.0104 | 12.7 | 19.05 | 12.7 | 620 | 680 | 30000 | | BHA 810ZOH |
| 0.0125 | 12.7 | 19.05 | 15.88 | 900 | 1110 | 30000 | | 17.462 | BHA 1112ZOH |
| 0.0193 | 17.462 | 23.812 | 19.05 | 1350 | 2020 | 25000 | | 25.4 | BHA 1612 |
| 0.0335 | 25.4 | 33.338 | 19.05 | 1970 | 3030 | 15000 | | 28.575 | BHA 1816ZOH |
| 0.06 | 28.575 | 38.1 | 25.4 | 3050 | 4950 | 13000 | | 31.75 | BHA 2020ZOH |
| 0.0815 | 31.75 | 41.275 | 31.75 | 4080 | 7100 | 12000 |
|
